How it’s made: Kimi’s racing helmet

Along with its owner, we went to discover how Kimi’s helmet was born, in the factory that Bell Helmets Racing has built a few meters from the entrance of the Al Sakhir circuit, in Bahrain.

The parts of pre-impregnated carbon fiber are cut into specific shapes before being placed in a shell mould.
kimi-bell-helmet-2015-krs6

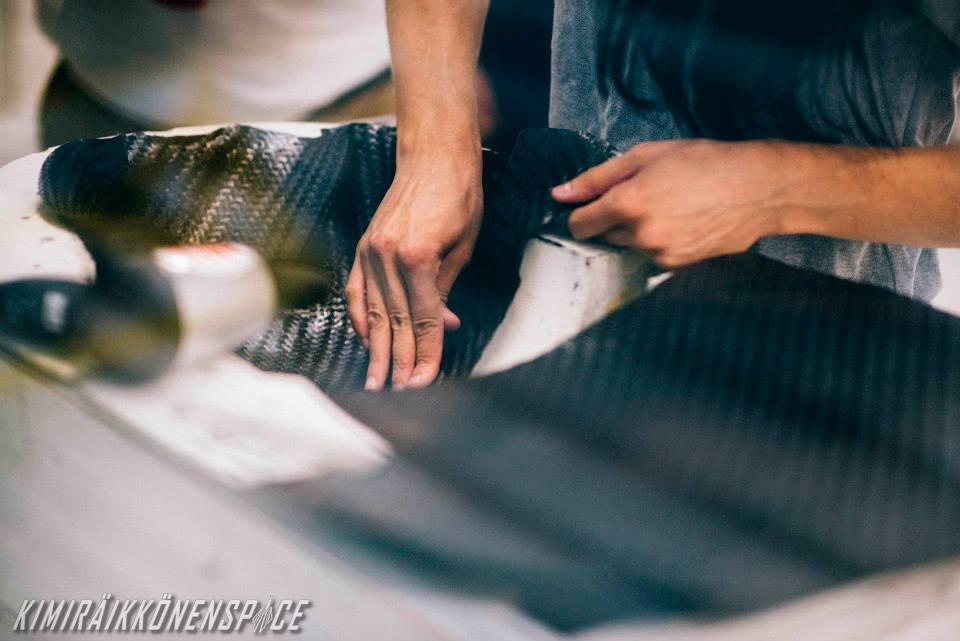

Up to 40 pieces of carbon fibre are positioned very precisely in a female mould. This is called the “lamination” of the shell.
kimi-bell-helmet-2015-krs11
When lamination is completed, the shell goes into an oven at 150 °C under vacuum for 30 minutes. This is a shell coming out of the oven.
kimi-bell-helmet-2015-krs2

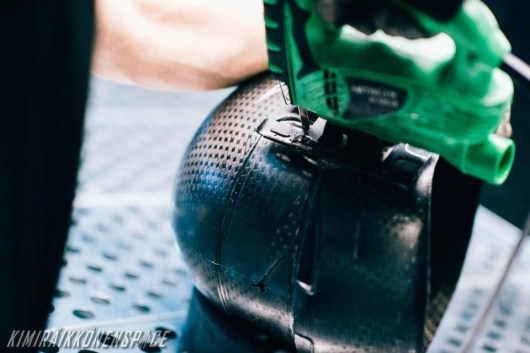

The opening for the visor, called the eyeport, and the excess of carbon in the lower part of the shell are cut with a jig saw.
kimi-bell-helmet-2015-krs9

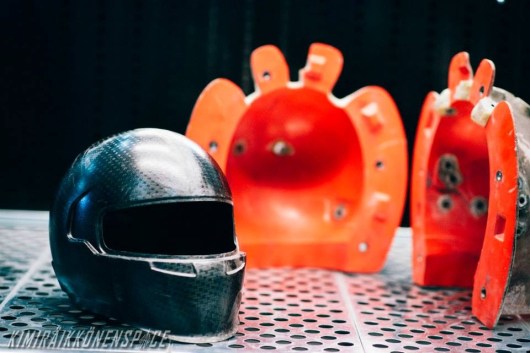

Now the shell already looks like a real helmet… The technician will now position the shell in a jig, allowing him to precisely trim the 12 ventilation holes on the helmet.
kimi-bell-helmet-2015-krs4
To obtain homologation, the helmet must pass a series of tests including penetration. This test consists of a spike weighing 4kg being fired into the helmet at a speed of 10 meters per second. Bell uses a special machine for this kind of test, developed and built in-house.
kimi-bell-helmet-2015-krs8

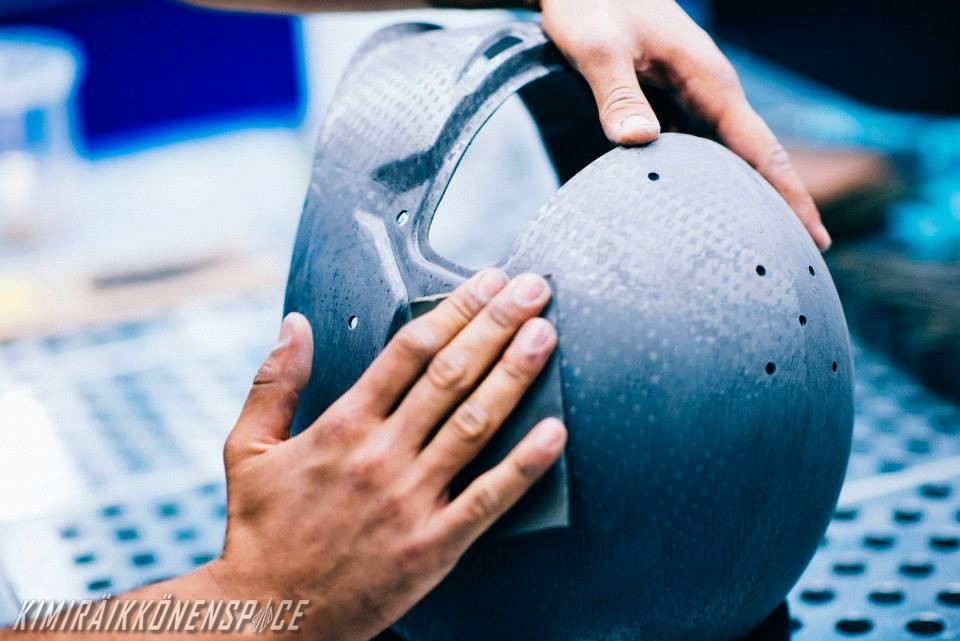

The shell is being prepared for painting by being carefully hand sanded…
kimi-bell-helmet-2015-krs10

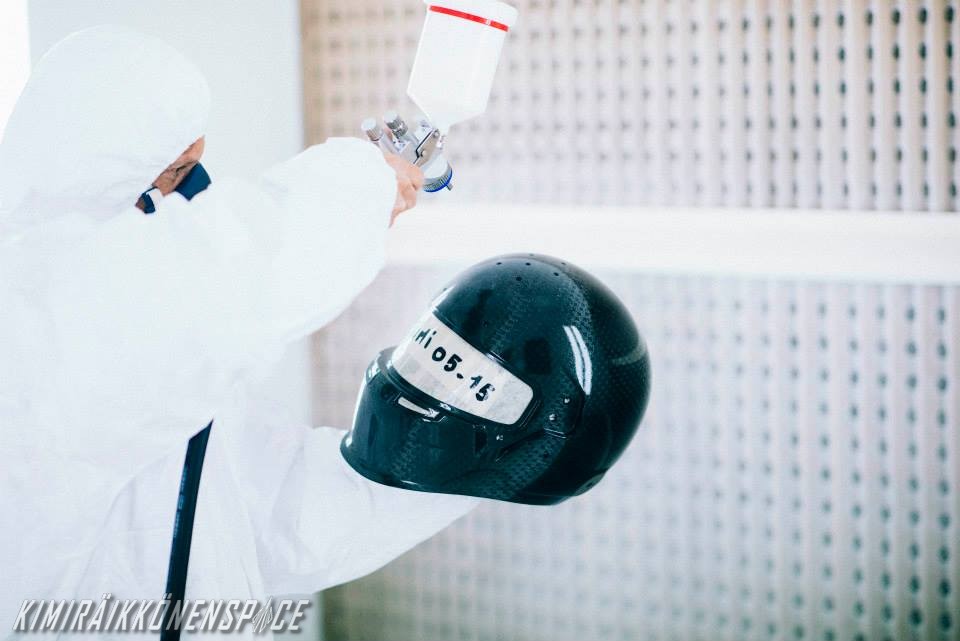

The shell receives a thin and smooth layer of clear coat, before being personalized into Kimi’s design.
kimi-bell-helmet-2015-krs5

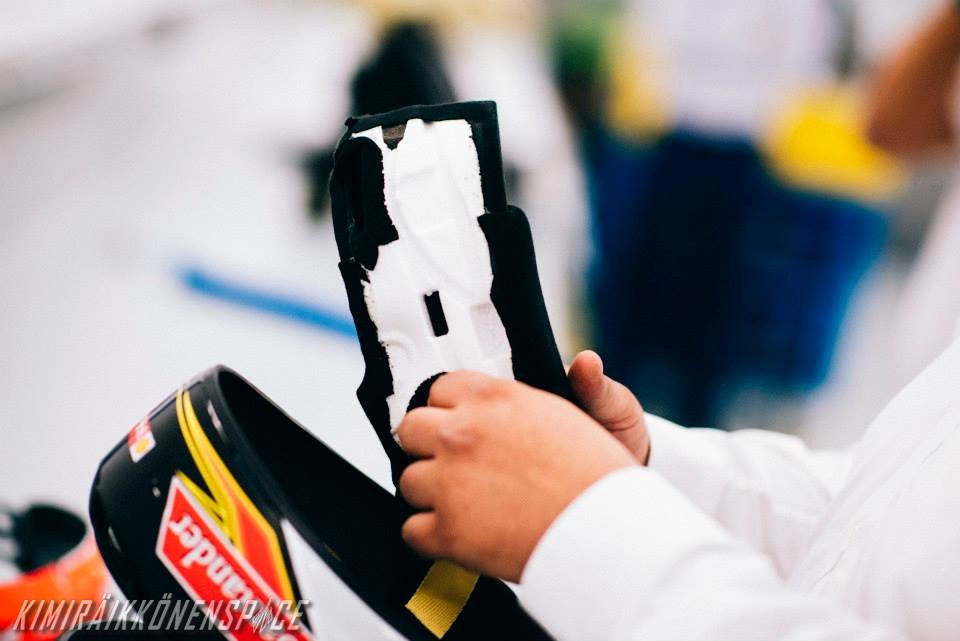

The interior parts are now fitted inside the painted shell.
kimi-bell-helmet-2015-krs3
Finally, the transparent aerodynamic spoilers and the air intakes are glued onto the helmet, and here we are…
kimi-bell-helmet-2015-krs7
…ready to go!
kimi-bell-helmet-2015-krs1


Video: watch how it’s made!
